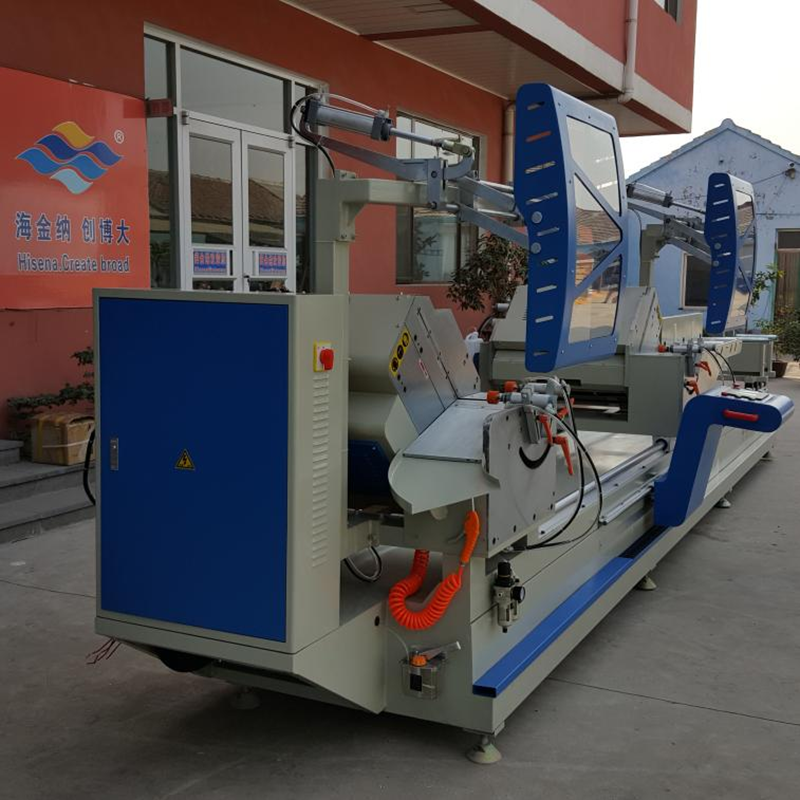

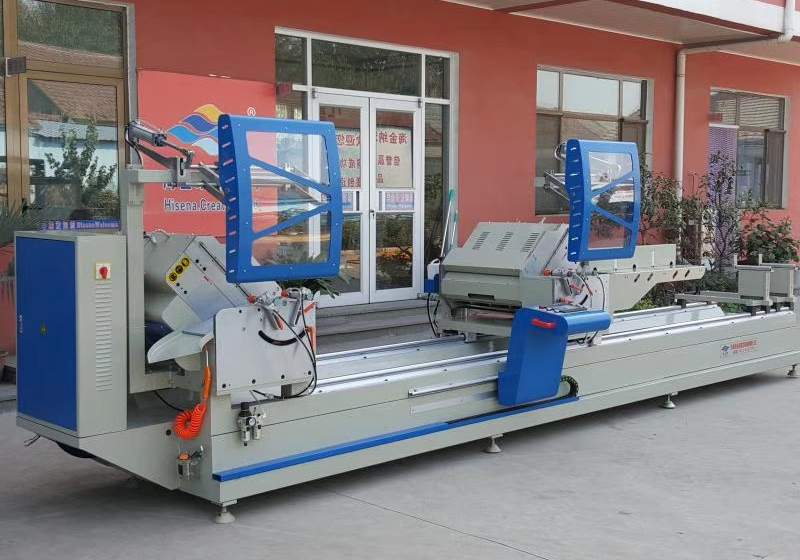

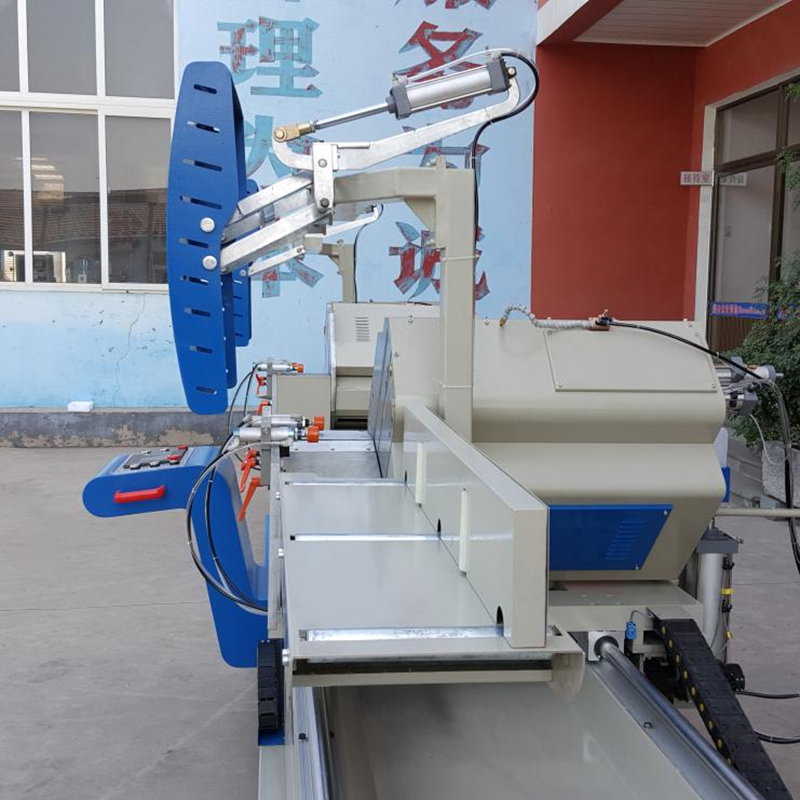

LJB2A-600×5000 Aluminum CNC ultra-wide double-head precision cutting machine introduction

Features:

* Suitable for cutting aluminum curtain wall profiles, window door profiles and PVC profiles.

*Feeding system adopts imported linear guide sub, high precision and good stability.

*The right head movement adopts high guiding ball screw movement, with high transmission accuracy, accurate positioning and stable work.

*The two saw heads can automatically convert the angle to achieve 45° flip inside and outside and 90° profile angle cutting.

*Hard alloy saw blade, with high processing precision and durability.

*Imported linear bearing with stable working precision.

*High precision spindle, saw blade rotation is stable.

*Pneumatic-hydraulic damping cylinder realizes even speed regulation for feed and smooth movement.

*Automatic opening and closing guard makes the work safe and convenient.

Parameters

Motor power: 4.4KW

Overall dimension: 6300mm×1700mm×1900mm

Weight: 2000KG

Maximum sawing diameter: 200mm

Cutting seam width: 6mm

Control form: CNC
