HJN4A-500×4400 CNC Double Head Extrusion Cutting Saw Machine

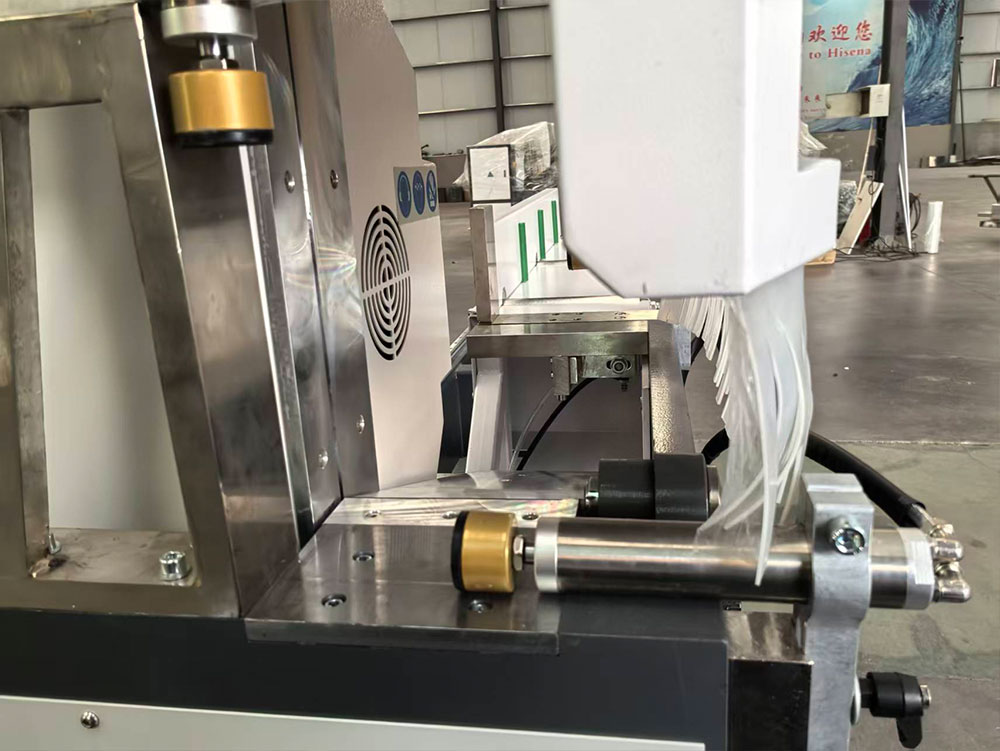

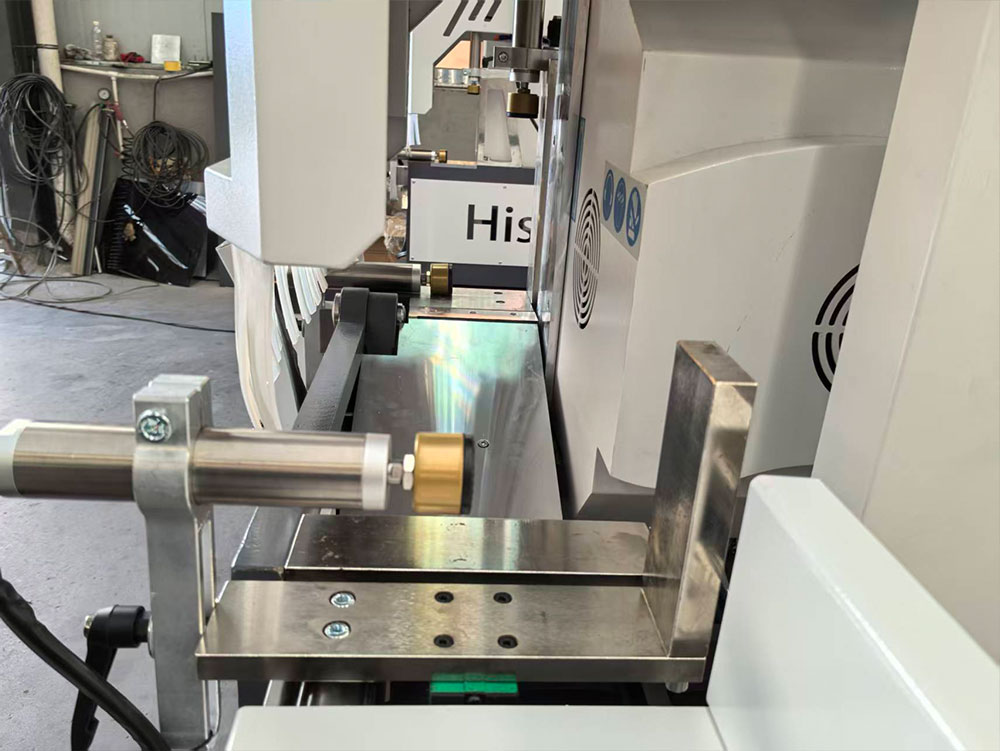

HJN4A-500*4400 is a fully automatic double head saw for 90 degree and 45 degree cutting, used for the production of aluminum and PVC windows and doors. The cutting angle, length and quantity can be set through HMI and executed automatically.

Standard Features Optional Technical Parameters Accessories Video
Standard Features
Optional
Technical Parameters
Model HJN4A -500*4400 Cutting angle: 90°/45°
Power supply 380v/50hz Cutting length 249-8800mm
Motor power: 2*3kw Max.cutting width 150mm
Input power 7.5kw Repeatability ±0.1mm
Air pressure 0.5-0.8Mpa Angle tolerance ±5′
Air consumption 200L /min Flatness ≤0.05mm
Rotational speed 2800rpm. Cutting surface roughness Ra12.5um
Feed rate 0-20000mm/min Overall dimension 5800x1500x1800mm
Blade size Ø500*Ø30*4.4mm*140T Weight 2000kg

Accessories
Components Brand
Spindle motor SEIMEC spindle motor(Italy)
Electric button and switcher SIEMENS(Germany)
Electrical parts Schneider(France)
Circuit breaker Schneider(France)

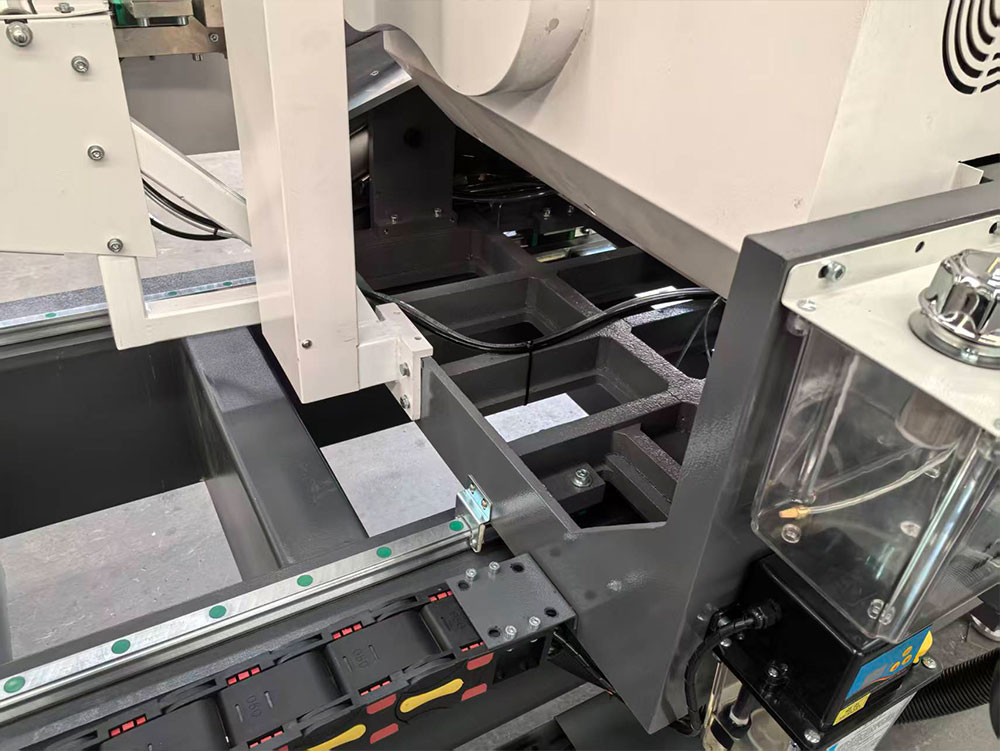

linear guide rail HIWIN (Taiwan)
Pinion and rack(Grinding) YYC(Taiwan)
Bearing SKF(Sweden)
Solenoid valve FTG
Cylinder Schneider(France)
Diamond blades Wagen(Japan)
Air pressure gauge and filter Schneider(France)
Gas pipe connector AKS (pure copper)
Monitor Schneider(France)
PLC Schneider(France)

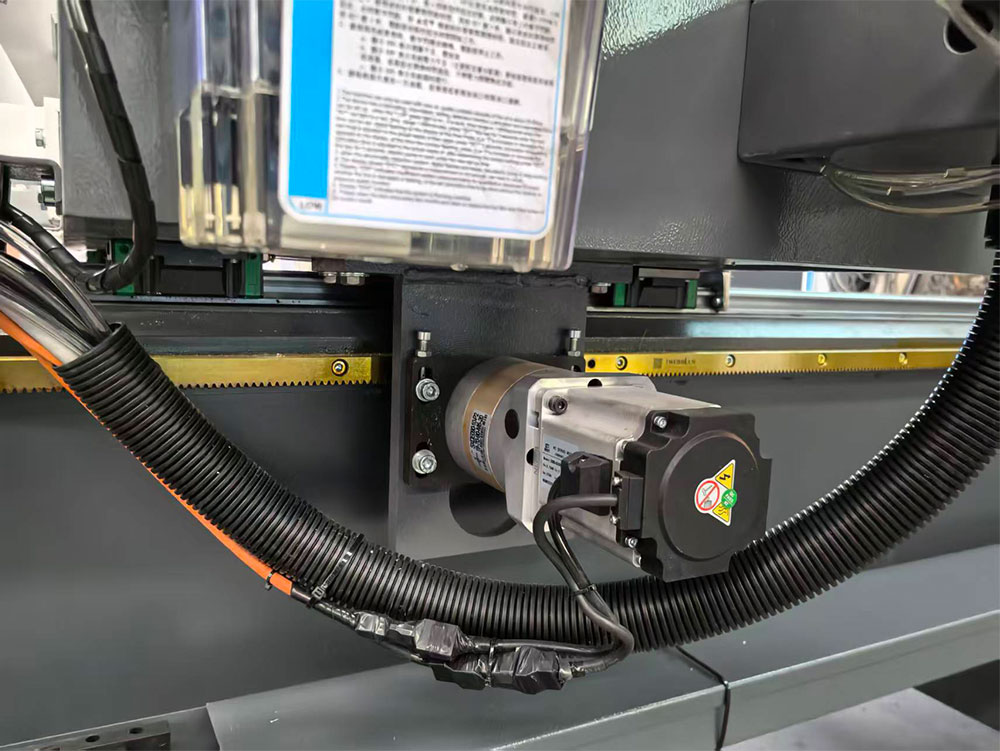

Servo Motor Schneider(France)
Reducer Schneider(France)
Numbers of pneumatic lift stands 3
Body frame 6mm thick steel tube
